Tungsten Carbide Nozzle Leakage: How To Deal With It?

In industrial manufacturing, 3D printing and sandblasting processes, tungsten carbide nozzles have become indispensable components in high-performance equipment. With its extremely high hardness and excellent wear resistance, it is often regarded as an ideal choice for long service life and low maintenance cost. However, many users still encounter a confusing problem after long-term use – tungsten carbide nozzle leakage.

Such problems not only reduce work efficiency, but may also lead to uneven spraying, waste of consumables, and even damage to equipment. Why does this nozzle, which is hailed as almost wear-resistant, still leak? And how can it be effectively avoided? This article will provide you with a detailed analysis from three perspectives: causes, material comparison, and solutions.

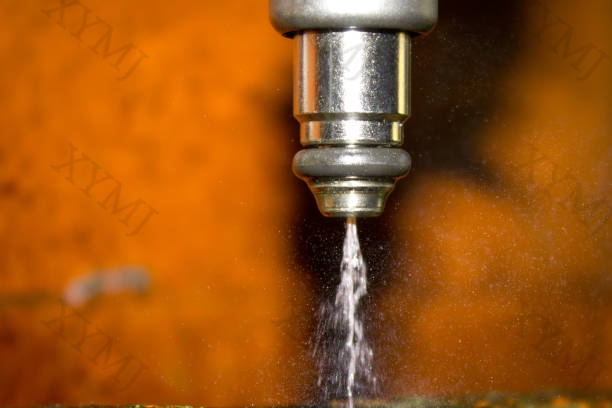

Why Does Tungsten Carbide Nozzle Leak?

Leakage is usually the result of the combined effect of multiple factors rather than a single cause. Even tungsten carbide with outstanding performance is hard to avoid the influence brought by structure, assembly or the environment.

1. Machining accuracy deviation

The quality of tungsten carbide nozzles on the market varies greatly. Some low-cost or non-original nozzles have insufficient precision control during processing, especially the coaxiality between the thread and the inner hole does not meet the standard. For instance, for the MK8 model nozzle, if the tolerance is too large during the manufacturing process, it may lead to tiny gaps between the interfaces, eventually causing leakage.

2. Improper installation or mismatched interfaces

Another common reason for nozzle leakage is incorrect installation. If the connection between the nozzle and the print head or sandblasting gun is not tight, the Angle is off, or the sealing gasket ages or deforms, the sealing performance will be greatly reduced. Many users are accustomed to tightening the nozzle forcefully to “prevent leakage”, but in fact, over-tightening can damage the threads or sealing rings, making the problem even more serious.

3. Thermal expansion and fatigue of materials

Although tungsten carbide can withstand high temperatures, there is a difference in the coefficient of thermal expansion between its interface with metals or plastics. When the equipment is exposed to high temperatures for a long time or repeated cooling cycles, this difference will cause slight deformation at the threaded part, thus forming an invisible gap. Over time, leakage becomes inevitable.

4. Internal blockage or accumulation of impurities

If powder, impurities or carbonized residues accumulate inside the nozzle, the pressure will be concentrated in the nozzle area. Under high pressure, if the consumables or gases cannot find an outlet, they will be squeezed out from the weakest seal, resulting in material leakage. This is particularly common in sandblasting equipment.

Vanadium vs Tungsten Carbide Nozzle

In the field of nozzles, vanadium alloy and tungsten carbide are two materials that are frequently compared. Both have their own characteristics in terms of hardness, heat resistance and sealing performance.

1. Hardness and wear resistance

The hardness of tungsten carbide is usually above HV1600, several times that of vanadium alloys. This means that in highly abrasive working environments (such as carbon fiber printing or high-speed sandblasting), tungsten carbide nozzles can maintain a longer service life and are less prone to wear and deformation.

2. High-temperature resistance

Vanadium alloy nozzles are prone to slight deformation at high temperatures, while tungsten carbide nozzles can operate stably in high-temperature environments. This gives it an edge in 3D printing high-temperature consumables and continuous jetting operations.

3. Sealing performance and flexibility

Vanadium alloy is relatively soft and can easily “fit” at the interface to form a good seal. Although tungsten carbide is harder, it lacks flexibility. If the processing accuracy is insufficient or the thread fit is deviated, even if it is only a slight error, it may lead to material leakage problems.

It can be seen from this that the advantages of tungsten carbide nozzles lie in their wear resistance and stability, but their sealing performance depends more on high-precision manufacturing and reasonable assembly.

The Performance Differences Of Tungsten Carbide Nozzles In Different Applications

1. Carbide 3D Printer Nozzles/MK8 nozzles

In 3D printing, tungsten carbide nozzles are widely used to print highly abrasive materials such as carbon fiber, glass fiber or metal-filled consumables. It can keep the spray holes smooth and prevent uneven spinneret caused by wear. However, if the print head interface or sealing ring ages, molten plastic will seep out from the thread gap, causing slight material leakage.

2. Tungsten Carbide nozzles sandblast

Sandblasting operations have extremely high requirements for the internal structure of nozzles. Tungsten carbide nozzles can withstand high-speed particle impact and high pressure. However, if the seal is not tight, the leaked airflow will cause unstable spray direction and uneven distribution of sand, thereby affecting the treatment effect.

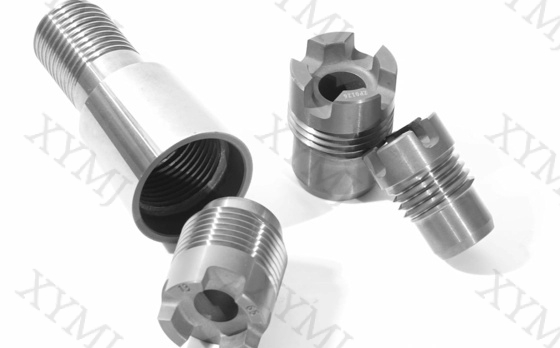

3. Industrial spraying and coating equipment

In these high-demand applications, the nozzles need to work for long periods and maintain fluid stability. If the interfaces and seals are not inspected regularly, even tungsten carbide nozzles may have micro-leakage problems caused by fatigue or contamination.

Key Methods For Preventing And Solving Tungsten Carbide Nozzle Leakage

Choose a high-precision nozzle brand

Give priority to tungsten carbide nozzles that have undergone strict tolerance control, especially common models such as MK8 and MK10. High-precision manufacturing can significantly reduce the problem of thread clearance.

Install and use the seal correctly

Use sealing gaskets of the appropriate model and ensure uniform torque during installation. Avoid over-tightening or using aged washers.

Clean the interior of the nozzle regularly

Regularly disassemble and clean the nozzles to remove the accumulation of carbides, powder and impurities to prevent abnormal increase in internal pressure.

An upgraded model with a leak-proof design

Some manufacturers have launched nozzles with optimized conical surface seals and internal chamfered structures, which can significantly enhance sealing performance and reduce the risk of leakage after long-term use.

Monitor the temperature and pressure environment

For continuous high-temperature and high-pressure applications, the working conditions should be appropriately controlled or the nozzles should be replaced regularly to prevent the occurrence of fatigue cracks.

Final Words

Tungsten carbide nozzles have become the preferred material in the industrial and 3D printing fields due to their excellent wear resistance and stability. However, high hardness does not mean no faults. Most material leakage problems are not caused by material defects, but by insufficient processing accuracy, installation methods or maintenance.

Only by choosing high-quality products and ensuring correct installation, good sealing and regular maintenance can the long service life and high performance advantages of tungsten carbide nozzles be truly brought into play. After all, no matter how hard the material is, it still requires precise matching and meticulous maintenance to achieve true leak-free.
